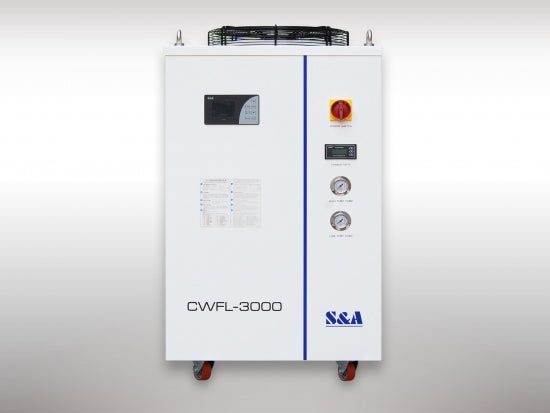

Industrial Refrigerated Water Chiller CWFL-3000 For Fiber Laser 3000W

Home > Laser Machines & Parts > Other Laser Parts > Industrial Chiller & Water Pump > BT005880

Categorie

Toys: Industrial Chiller & Water Pump; Stepper motor & Driver; Air compressor & Pump; Cable Chain; Laser Power Meter; Other Parts

Browse History

Industrial Refrigerated Water Chiller CWFL-3000 For Fiber Laser 3000W

Industrial Refrigerated Water Chiller CWFL-3000 For Fiber Laser 3000WBT005880

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 PC)
1--49	Need to log in
above50	Need to log in

Model:: CWFL-3000BN

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

Product Parameters

Model	CWFL-3000ANS	CWFL-3000BNS	CWFL-3000ENS
Voltage	AC 1P 220-240V	AC 1P 220-240V	AC 3P 380V
Frequency	50Hz	60Hz	50Hz
Current	5.0~19.7A	3.6~21.5A	2.1 ~9.5 A
Machine power	3.8 kW	4.33 kW	3.84 kW
Electric assisted power	800W+1400W		600W+1400W
Precision	±0.5℃
Reducer	Capillary
Pump power	0.75kW	1kW	0.75kW
Tank capacity	22L
Inlet and outlet	Rp1/2”+Rp1”
Lift	50M	59M	56M
Rated flow	2 L/min+＞20 L/min
N.W.	93Kgs	100Kgs	105Kgs
G.W.	109Kgs	116Kgs	121Kgs
Dimension	77 X 55 X 103cm (L X W X H)
Package dimension	84 X 74 X 120cm (LX W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±0.5°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-410a

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V or 220V

Optional Items

Heater

Filter

Product Details

S&A CWFL-3000 Laser Chiller Temperature Controller T-607

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.
