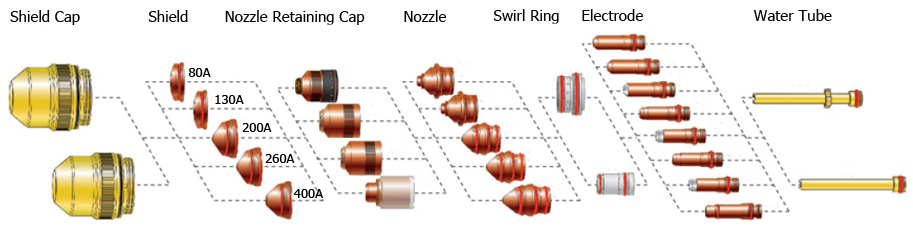

HPR130XD | HPR260XD | HPR400XD
Mild steel
| Amperage | Shield cap | Shield | Nozzle retaining cap | Nozzle | Swirl ring | Electrode |
SP electrode |
Water tube |
| 30 A | 220747* | 220194 | 220754* | 220193 | 220180 | 220192 | ______ | 220340* |
| 50 A | 220555 | 220554 | 220553* | 220552 | ______ | |||
| 80 A | 220189 | 220756 | 220188 | 220179 | 220187 | ______ | ||
| 130 A | 220183 | 220182 | 220179 | 220181 | 220665* | |||
| 200 A | 220637* | 220761 | 220757* | 220354 | 220353 | 220352 | 220666 | |
| 260 A | 220764 | 220760* | 220439 | 220436 | 220435 | 220668* | ||
| 400 A | 220636* | 220635* | 220632 | 220631* | 220629 | ______ | 220571* | |
| 80 A bevel | 220742* | 220845* | 220806* | 220179 | 220802* | ______ | 220700* | |
| 130 A bevel | 220742* | 220740* | 220646* | 220179 | 220649* | ______ | ||
| 200 A bevel | 220658* | 220845* | 220659* | 220353 | 220662* | ______ | ||
| 260 A bevel | 220741 | 220740* | 220542 | 220436 | 220541 | ______ | 220571* | |
| * 260 A bevel | 220897* | 220896* | 220898* | 220436 | 220899* | ______ | ||
| 400 A bevel | 220636* | 220635* | 220632 | 220631* | 220629 | ______ |
Stainless steel
| Amperage | Shield cap | Shield | Nozzle retaining cap | Nozzle | Swirl ring | Electrode |
SP electrode |
Water tube |
| 45 A | 220747* | 220202* | 220755* | 220201* | 220180 | 220308* | 220340* | |
| 60 A HDi | 220815* | 220814* | 220847* | 220339* | ||||
| 80 A | 220338* | 220755* | 220337* | 220179 | ||||
| 130 A | 220198 | 220755 (H35)* | 220197 | 220307 | ||||
| 220756 (N2) | ||||||||
| 200 A | 220637* | 220762* | 220758* | 220343* | 220342* | |||
| 260 A | 220763* | 220406 | 220405* | |||||
| 400 A | 220707* | 220712* | 220708* | 220709* | 220571* | |||
| 130 A bevel | 220738* | 220739* | 220656* | 220179 | 220606* | |||
| 260 A bevel | 220738* | 220739* | 220607* | 220405* | ||||
| 400 A bevel | 220707* | 220712* | 220708* | 220709* | ||||
Aluminum
| Amperage | Shield cap | Shield | Nozzle retaining cap | Nozzle | Swirl ring | Electrode |
SP electrode |
Water tube |
| 45 A | 220747* | 220202* | 220756 | 220201* | 220180 | 220308* | 220340* | |
| 130 A | 220198 | 220755 *(H35) | 220197 | 220179 | 220307 (H35) | |||
| 220756 (Air) | 220181 (Air) | |||||||
| 200 A | 220637* | 220762* | 220759* | 220346* | 220342* | 220307 | ||
| 260 A | 220763* | 220758* | 220406 | 220405* | 220307 | |||
| 400 A | 220707* | 220712* | 220708* | 220405* | 220709* | 220571* |
BORTE is in no way affiliated with the Hypertherm. References to the above-named machines, torches, parts, and reference numbers are for convenience only. The products listed here are not genuine ones, but are made for and by BORTE. Parts indicated with * suffix are original parts manufactured by the above named manufacturer and are being resold by BORTE. BORTE reserves the right to substitute OEM parts in place of BORTE parts.
-
220183 Shield Compatible for Plasma Consumables
$2.75 USD
-
220189 Shield Compatible for Plasma Consumables
$2.75 USD
-
220187 Electrode Compatible for Plasma Consumables
$2.75 USD
-
220435 Electrode Compatible for Plasma Consumables
$2.75 USD
-
220338* Shield for Plasma Consumables
$10.72 USD
-
220198 Shield Compatible for Plasma Consumables
$2.75 USD
-
220182 Nozzle Compatible for Plasma Consumables
$6.10 USD
-
220337* Nozzle for Plasma Consumables
$13.03 USD
-
220197 Nozzle Compatible for Plasma Consumables
$6.10 USD
-
220354 Nozzle Compatible for Plasma Consumables
$6.10 USD
-
220343* Nozzle for Plasma Consumables
$13.03 USD
-
220439 Nozzle Compatible for Plasma Consumables
$6.10 USD
