Description

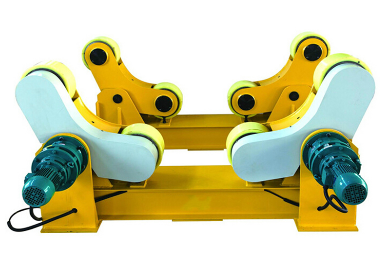

1. 5-ton self aligning welding roller frame, capable of working in various environments; It can adapt to the use of cylindrical, cylindrical and other workpieces with a weight of less than 5T and a diameter of 350mm-2500mm. It adopts variable frequency speed regulation, and the rotation speed is stepless adjustable within 60-1000mm/min. The polyurethane roller design increases the friction between the roller and the workpieces. It is temperature resistant, wear-resistant and non-slip.
2. The 10-ton Self aligning welding roller frame with variable frequency speed regulation can work in various environments; It can adapt to the use of cylindrical, cylindrical and other workpieces with a weight of less than 10T and a diameter of 700mm-3800mm. It adopts variable frequency speed regulation, and the rotation speed is stepless adjustable within 60-1000mm/min. The polyurethane roller design increases the friction between the roller and the workpieces, which is temperature resistant, wear-resistant and non-slip.
|
5T Self Aligning welding rotator Data |
||
|
Model |
S-5T |
S- 10T
|
|
Power Input |
380V |
380V |
|
Max Capacity |
5000Kg |
10T |
|
Rotary Speed |
60-1000mm/min |
60-1000mm/min |
|
Diameter Range |
Ø350-2500mm |
Ø700-3800mm |
|
Driven Motor |
0.37KW |
2x0.37KW |
|
Roller Type |
120mm(W)×Ø250mm |
120mm(W)×Ø250mm |
|
Overall Dimension |
1450×820×660mm |
1750×820×660mm |
|
Overall Dimension |
1450x392x660mm |
1750x360x660mm |
