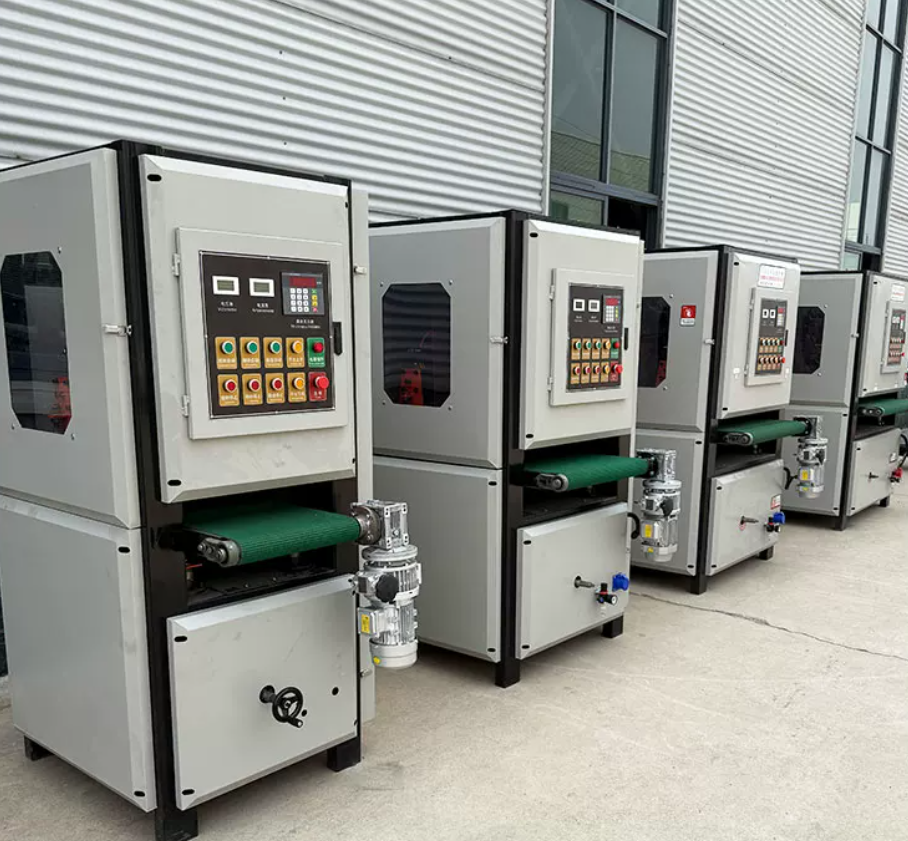

Fully Automatic Flat Polishing Machine

Home > Other Auxiliary Machines > BT006202

Categorie

Toys: Laser Machines & Parts; Welding & Cutting Machine; Plasma Torches & Parts; MIG Torch & Parts; TIG Torches & Parts; Welding Auxiliary Equipments; Welding Tools&Accessories; Gas Welding/Cutting; Welding Materials; Protection & Safety; Machine Tools & Accessories; Other Auxiliary Machines; Power Tools; *Promotion&Groupbuy*

Browse History

Fully Automatic Flat Polishing MachineBT006202

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 set)
0	Need to log in
1--4	Need to log in
above5	Need to log in

Model:: M400 M600 M800 M1000 M1300

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

Application Materials & Functions

Suitable for iron, carbon steel, stainless steel, copper, aluminum workpieces
Integrated functions: Deburring, Hairline Finishing, Rust Removal, Oxide Scale Stripping

Core Standard Configurations
Electric Lifting System
Automatic Belt Deviation Correction
Infrared Detection Sensor
CNC Control Panel

Product Introduction
Twin abrasive belt combined structure for flat deburring, polishing, metal hairline finishing and oxide removal.

One-pass removal of stamping, laser & plasma cutting burrs, stable & safe operation with premium finished surface.

Parameter Item	M400	M600	M800	M1000	M1300
Full Machine Name	Fully Automatic 400 Flat Polishing Machine	Fully Automatic 600 Flat Polishing Machine	Fully Automatic 800 Flat Polishing Machine	Fully Automatic 1000 Flat Polishing Machine	Fully Automatic 1300 Flat Polishing Machine
Max. Processing Width	380mm	580mm	780mm	980mm	1280mm
Processable Thickness	0.5-100mm	0.5-100mm	0.5-100mm	0.5-100mm	0.5-100mm
Feeding Speed	9m/min	9m/min	9m/min	9m/min	9m/min
Worktable Height	900mm	900mm	900mm	900mm	900mm
Machine Noise	≤85dB	≤85dB	≤85dB	≤85dB	≤85dB
Main Motor Power	4KW × 2 units	5.5KW × 2 units	7.5KW × 2 units	9KW × 2 units	11KW × 2 units
Conveying Motor Power	0.37KW × 1 unit	0.37KW × 1 unit	0.37KW × 1 unit	0.75KW × 1 unit	1.1KW × 1 unit
Sand Belt Size	1570×380mm	1570×380mm	1570×780mm	1570×980mm	1570×1280mm
Overall Dimension (LWH)	1750×1350×750mm	1750×1350×950mm	1770×1300×1150mm	1770×1300×1350mm	1770×1350×1650mm
Net Weight	Approx. 460kg	Approx. 520kg	Approx. 680kg	Approx. 880kg	Approx. 1000kg

There are currently no optional accessories for this item.
