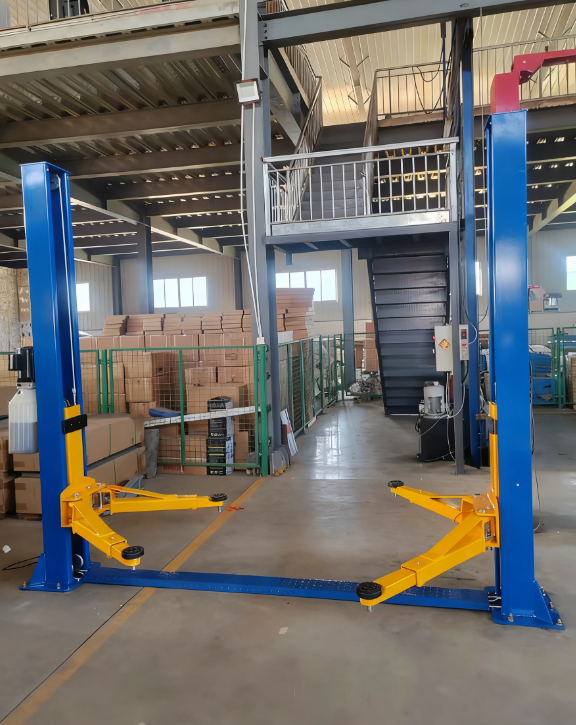

Specification
|
Parameter Category |
Parameter Description |
Specification |
|
Lifting Performance |
Maximum Lifting Height |
1800mm |
|
|
Rated Lifting Capacity |
4T |
|
|
Lifting Time |
Approximately 50s |
|
Structural Dimensions |
Maximum Column Height |
2830mm |
|
|
Maximum Width |
3450mm |
|
|
Passing Width |
2660mm |
|
|
Arm Length |
1150mm |
|
|
Maximum Height of Support Feet from Ground |
185mm |
|
|
Minimum Height of Support Feet from Ground |
100mm |
|
|
Width Between Columns |
2800mm |
|
Power & Weight |
Motor Power |
2.2 kW |
|
|
Power Supply Voltage |
380V / 220V |
|
|
Machine Weight |
Approximately 540kg |
|
Certification & Packaging |
Certification |
With CE |
|
|
Packaging Dimensions |
282*47*81.5cm 77.5 *26*27cm |
