Key Features
● IGBT module Inverter Technology.
● Multiple functions of DC pulse TIG welding, DC TIG welding, AC pulse TIG welding, AC TIG welding, MMA welding.
● The front panel layout is designed in accordance with the principle of standardized operation process, with humanized overall operation and convenient and fast parameter adjustment.
● It has the functions of slow current rise, slow current drop, pulse frequency, early air supply and delayed air cut-off, especially suitable for automatic welding.
● Wide range of welding materials, suitable for the welding of low carbon steel, stainless steel, alloy steel, red copper, aluminum, aluminum magnesium alloy and other materials.
Specification
|
Product model |

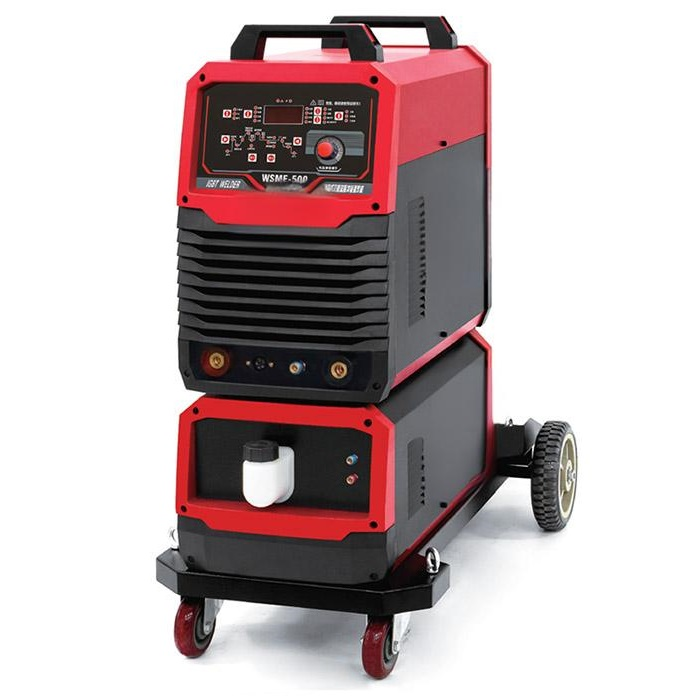

TIG-315 AC/DC Pulse | TIG-500 AC/DC Pulse |
| Rated input voltage | 3PH380V | 3PH380V |
| Power frequency | 50/60HZ | 50/60HZ |
| Rated input current | 21A | 40A |
| Rated input power | 13.8KVA | 26KVA |
| External fuse | 40 | 60 |
| No load voltage | 85V | 95V |
|
welding current |
15-315A | 20-500A |
| Rated load duration | 60% | 60% |
| Efficiency (at rated conditions) | ≥0.85 | ≥0.85 |
| Insulation class | F | F |
| Torch Cooling Method |
Air cooling (Water cooler is optional) |
Water cooling |
| Enclosure protection class | IP21S | IP21S |
| Overall dimension | 515X275X465mm | 1040X515X970 mm |
| Weight | 26Kg | 90Kg (including the water cooler) |
| Package | Carton box | Wooden box |
