Video
On-site demo ( with automatic bundle loader, which is optional)

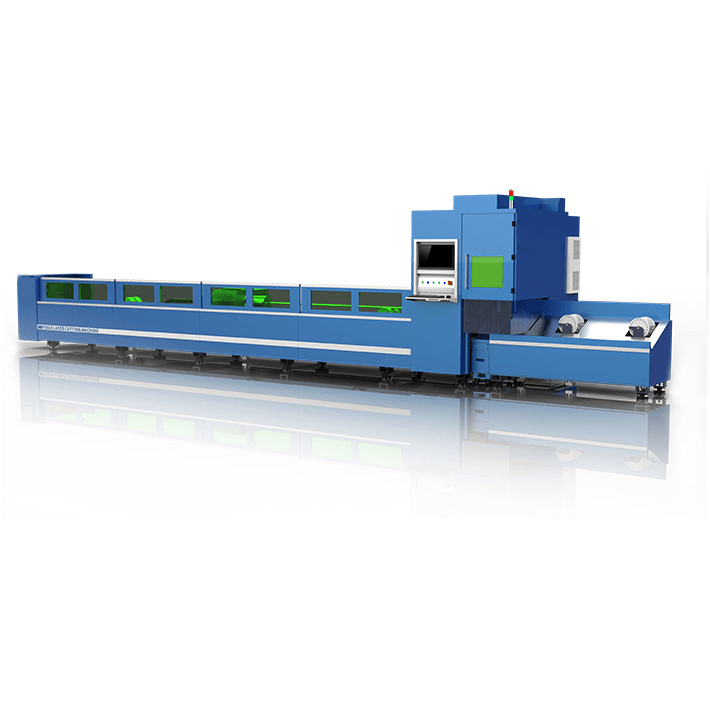

Key Parameters
| Laser power | Standard: 3000W, can be customerized upto 6000W. |
| Loading method | front and rear double pneumatic |
| Chuck clamping diameter |
For Round tube: Φ15mm-Φ350mm For Square tube:15*15mm-300*300mm |

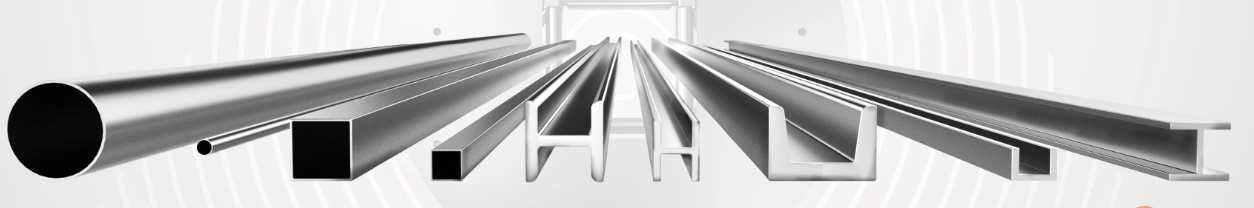

| Material type | stainless steel round tube, square tube, rectangular tube, oval tube, etc. |
| Pipe feeding length | Standard: 6000mm , can be customerized tupto 12000mm |

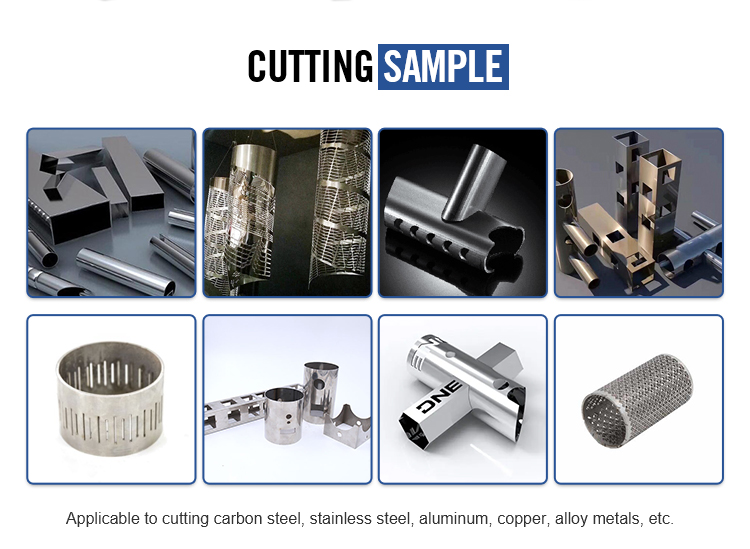

| Laser cutting thickness | stainless steel 10mm carbon steel 20mm |
| Minimum tailing clamping length | ≤50mm |
| Maximum single tube weight | 200KG |
| X-axis working stroke | 0-200mm |
| X-axis positioning accuracy | ±0.05mm |
| X-axis maximum positioning speed | 60m/min |
| X-axis repeatability | ±0.03mm |
| Y-axis working stroke | 0-6050mm |
| Y-axis positioning accuracy | ±0.05mm |
| Y-axis maximum positioning speed | 80m/min |
| Y-axis repeatability | ±0.03mm |
| Z-axis working stroke | 0-250mm |
| Z-axis positioning accuracy | ±0.05mm |
| Z-axis maximum positioning speed | 35m/min |
| Z-axis repeat positioning accuracy | ±0.03mm |
