Key Features
1.DSP Digital cotrol system, stable input, precise feeding, high capaibityfor anti-voltage fluctation.
2.IGBT inverter technology, stable welding process and excellent welding seam.
3.With unified adjusting function,Built-in welding expert database, and Automatic intelligent parameter combination.
4.Good performance for thin sheet welding, suitable for welding various kinds of aluminum alloy, stainless steel, copper alloy etc, less welding spartter.
5.Special four steps function, suitable for high conductivity metal, arc start and arc end can be adjusted, perfect welding quality.
6. Small size, light weight, convenient to carry, high stability, electricity saving.
Specification

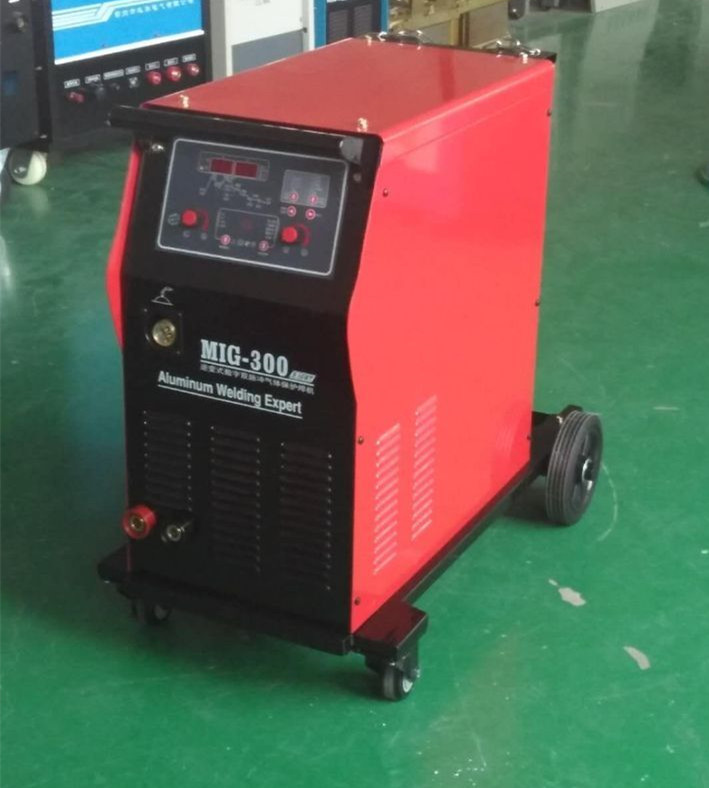

| Item | MIG-300S |
| 电源配置 Power Supply | 1Phase 220V, 50/60Hz |
| 额定输入容量 Rated input power | 9.8KWV |
| 电流调节范围 Current adjustment range | 10-300A |
| 电压调节范围 Voltage adjustment range | 14.5-28V |
| 暂载率 Duty circle | 60% |
| 空载电压 No-load voltage | 65V |
| 供给类型 Feeder type | Dual Drive |
| 冷却方式 Cooling method | Air cooling |
| 适用焊丝直径 for welding wire Dia | 0.8-1.2mm |
| 效率 Efficiency | 0.85 |
| 设置重量 Weight of machine | 45kgs |
| 体积 Size(LxWxH) | 830x420*710mm |
There are currently no optional accessories for this item.
