Key Features

 LCD display
300,000 ture colors.

PFC technolohy
Power factor more than 0.99.Multiple advantages such as energy saving and wider input voltage, works with 110V and 220V.

Spool
Capable of loading up to 5KG spool.

Arc Stability
Waveform control,for added stability of the arc,even at low currents.

Protections
Equipped with temperature, voltage and current sensors for high protection.

Specification

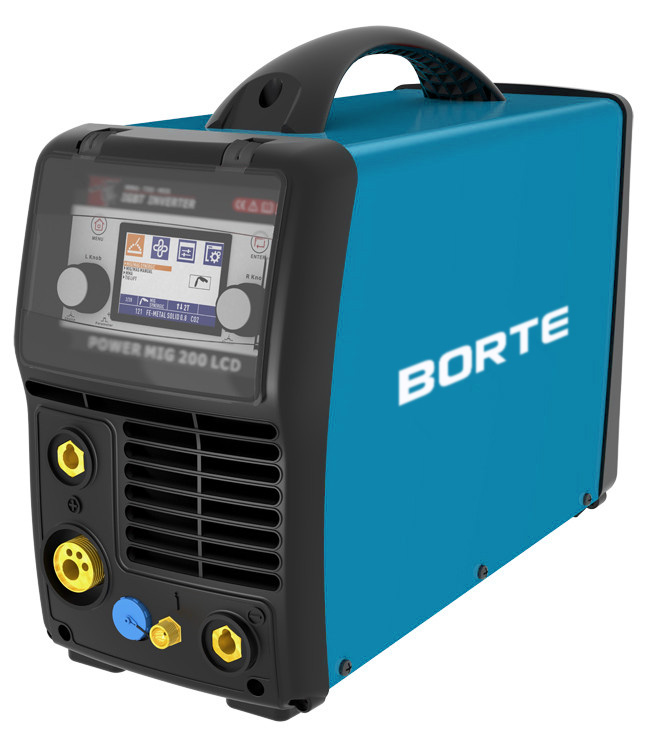

• modelPOWER MIG 200 LCD
• power supply voltage(V)90~275
• Fre.(HZ)50/60
• Rated Input Power (KW)

  1~110/120/130 ±10%			1~220/230/240 ±10%
  MIG	MMA	TIG	MIG	MMA	TIG
  3.7	4.1	2.8	6.0	6.2	4.2

• Rated input current(A)

  35

  38

  25

  44

  42

  32

• Duty Cycle(40℃ 10Min)

  30%130A 60%95A 100%75A

  35%200A 60%155A 100%120A

• No Load Voltage(V)65
• Welding Current Range(A)40~200
• Welding Voltage Range(V)14~24
• Wire Diameter(mm)Fe:0.6/0.9/1.0
  Ss:0.8/0.9/1.0
  Flux-Cored:0.6/0.8/0.9/1.0
• Efficiency≥85%
• Net Weight(Kg)12.0
• Dimensions(mm)511x213x400
• power factor0.99
• Insulation ClassH
• Protection ClassIP23
• CoolingAF
