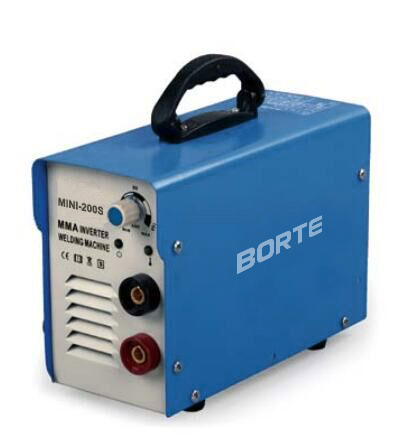

Mini Arc Welding Machine 120/140/160/180/200

Mini Arc Welding Machine 120/140/160/180/200BT005365

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 Set)
above0	Need to log in

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

Key Features

● IGBT tube inverter technology.

● Automatically compensate Voltage fluctuation.

● Automatically over-voltage and over-current protection.

● Good thrust compensation and dynamic characteristics, less spatter, high efficiency and excellent weld appearance.

● Applicable to a variety of acidic and alkaline electrode.

● Applicable Material: Carbon steel, Stainless steel, Low-alloy steel.

● The digital display function is optional (D series).

● CE certificated.

Model	MINI-120S MINI-120D	MINI-140S MINI-140D	MINI-160S MINI-160D	MINI-180S MINI-180D	MINI-200S MINI-200D
Input voltage	220V±20% (Single phase)
Input voltage Frequency	50/60Hz
Rated Input power capacity(KVA)	4.1	5	5.9	6.8	7.8
No-Load voltage(V)	72	72	72	76	76
Output current range(A)	20-120	20-145	20-160	20-180	20-200
Duty-cycle at 40℃	40%
Efficiency	85%
Power factor	0.92
Protection class	IP21S
Diameter of Rod	1.6-3.2	1.6-3.2	1.6-4.0	1.6-4.0	1.6-5.0
Weight (kg)	4.8	4.8	6.6	7.2	7.5
Dimension(MM)	360x220x260			380x240x280
