Key Features
● Automatically compensate Voltage fluctuation.
● Automatically over-voltage and over-current protection.
● Hot start function
● Good thrust compensation and dynamic characteristics, less spatter, high efficiency and excellent weld appearance.
● Applicable to a variety of acidic and alkaline electrode.
● Applicable Material: Carbon steel, Stainless steel, Low-alloy steel.
● Can continously weld φ3.2mm electrode rods
● CE certificated.
Specification

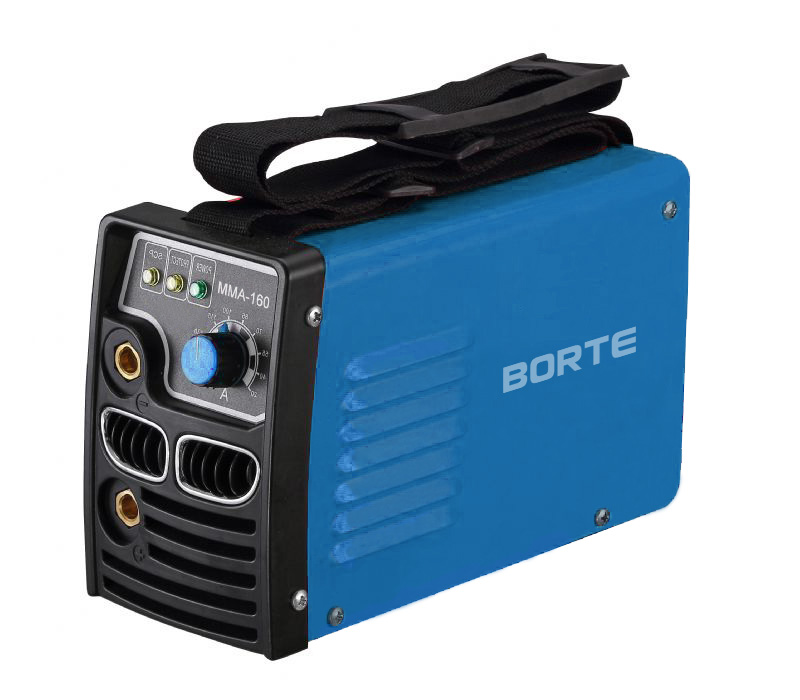

| Model | MMA-160 |
| Rated Input Voltage |
220V±15% |
| Rated Input Power | 4.8KVA |
| No-load Voltage | 56V |
| Rated Output Current | 160A |
| Rated Output Voltage | 24.8V |
| Range of Output Current | 20-160A |
| Range of Output Voltage | 19-24.8V |
| Duty Cycle |
160A@ 60% 40°C 160A@100% 25°C |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimension(mm) | 280x110x160 |
| Weight | 4kg |
There are currently no optional accessories for this item.
