Key Features
● HF/Touch arc piloting, narrow and smooth cutting seam.
● Energy concentration, fast cutting speed, smooth cut, less deformation.
● Over heat, over current, over voltage, etc protective electric circuit built-in, safety operation.
● Ideal equipment to cut all kinds of conductive material such as stainless steel, copper, carbon steel and aluminum, etc.
Specification

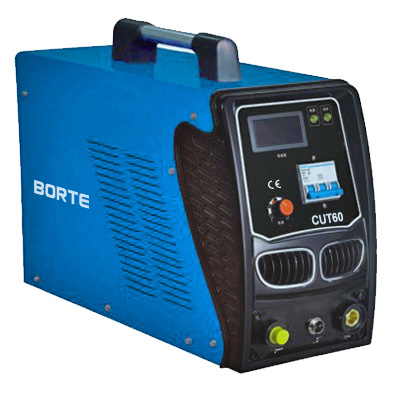

| Model | CUT-60 |
| Rated Input Voltage | 380V±15% |
| Rated Input Power | 7.9KVA |
| No-load Voltage | 295V |
| Rated Output Current | 63A |
| Rated Output Voltage | 104V |
| Range of Output Current | 20-60A |
| Max Cutting Thickness(Carbon Steel) | 22mm |
| Quality Cutting Thickness(Carbon Steel) | 15mm |
| Range of Output Voltage | 90-104V |
| Duty Cycly | 60% |
| Arc Piloting | HF/Touch |
| Insulation Grade | F |
| Protection Class | IP21S |
| Dimension(mm) | 570x260x496 |
| Net Weight | 19kg |
| Gross Weight | 21kg |
