Key Features
● Arc-Force for Anti-sticking.
● Hot-Start.
● Automatically compensate Voltage fluctuation.
● Automatically over-voltage and over-current protection.
● Good thrust compensation and dynamic characteristics, less spatter, high efficiency and excellent weld appearance.
● Applicable to a variety of acidic and alkaline electrode.
● Applicable Material: Carbon steel, Stainless steel, Low-alloy steel.
● The remote control is optional.
● GS/CE, ETL, cETLus certificated.
Specification

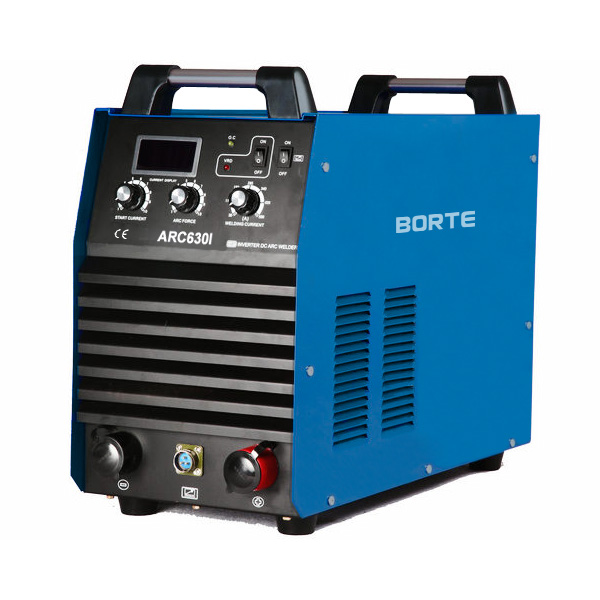

| Model | ARC630I |
| Rated Input Voltage |
380V±15% |
| Rated Power | 33.5KVA |
| Rated Input Current | 50.9A |
| No-load Voltage | 70V |
| Range of Output Current | 30-630A |
| Rod Dia.(mm) | 1.6-6.0 |
| Duty Cycle | 40% |
| Insulation Grade | F |
| Protection Class | IP21 |
| Dimension(mm) | 600x262x480 |
| Net Weight | 30kg |
