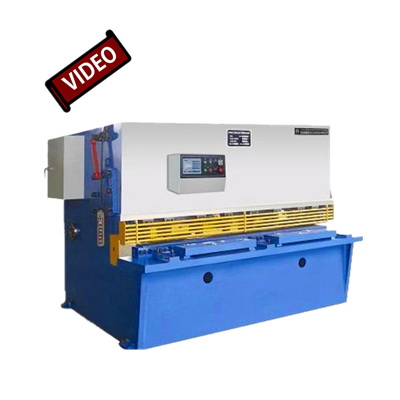

BORTE supply Hydraulic Shearing machines with the shearing range from 0.5 mm. to 25 mm (thickness) and 1250 to 5000 mm in (Width)
If you're interested in the other model, please send your inquiry to your sales specialist.
Model Selection Guide
|
Model
Thickness*Width(mm)
|
Shear Angle |
Strokes
(Times/min)
|
Back gauge Range
(mm)
|
Main Motor
(kw)
|
Weight
(kg)
|
Overall Size
(LWH)(mm)
|
| QC12Y-4×2500 | 1°30' | ≥18 | 20-600 | 7.5 | 4,800 | 3040×1610×1650 |
| QC12Y-4×3200 | 1°30' | ≥14 | 20-600 | 7.5 | 6,400 | 3840×1610×1650 |
| QC12Y-6×2500 | 1°30' | ≥18 | 20-600 | 7.5 | 5,500 | 3040×1610×1650 |
| QC12Y-6×3200 | 1°30' | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
| QC12Y-6×4000 | 1°30' | ≥10 | 20-600 | 11 | 8,500 | 4640×1705×1700 |
| QC12Y-6×5000 | 1°30' | ≥10 | 20-750 | 11 | 16,000 | 5786×2200×2060 |
| QC12Y-8×2500 | 1°30' | ≥14 | 20-600 | 11 | 6,000 | 3040×1610×1650 |
| QC12Y-8×3200 | 1°30' | ≥10 | 20-600 | 11 | 7,000 | 3840×1610×1650 |
| QC12Y-8×4000 | 1°30' | ≥8 | 20-600 | 11 | 9,200 | 4680×1705×1700 |
| QC12Y-8×5000 | 1°30' | ≥7 | 20-600 | 15 | 21,000 | 5786×2252×2310 |
| QC12Y-10×2500 | 2° | ≥11 | 20-750 | 15 | 8,500 | 3350×2050×1950 |
| QC12Y-10×3200 | 1°48' | ≥10 | 20-600 | 15 | 9,500 | 4050×2050×1950 |
| QC12Y-10×4000 | 2° | ≥12 | 20-600 | 18.5 | 14,500 | 4800×2200×2100 |
| QC12Y-12×2500 | 1°40' | ≥11 | 20-800 | 15 | 8,500 | 3350×2050×1950 |
| QC12Y-12×3200 | 1°40' | ≥10 | 20-600 | 18.5 | 12,500 | 4020×2050×2230 |
| QC12Y-12×4000 | 1°40' | ≥8 | 20-800 | 18.5 | 18,000 | 4820×2400×2300 |
| QC12Y-16×3200 | 2°20' | ≥7 | 20-800 | 18.5 | 13,800 | 3945×2477×2035 |
| QC12Y-16×4000 | 2°20' | ≥5 | 20-800 | 18.5 | 15,300 | 4745×2477×2035 |
| QC12Y-20×2500 | 2°30' | ≥6 | 20-800 | 30 | 16,000 | 3440×2088×2570 |
| QC12Y-20×3200 | 2°30' | ≥5 | 30-800 | 30 | 18,000 | 4150×2350×2710 |
| QC12Y-20×4000 | 2°30' | ≥5 | 30-1000 | 37 | 21,000 | 4920×2400×2730 |
| QC12Y-20×5000 | 2°30' | ≥4 | 20-800 | 37 | 30,000 | 5900×3000×3300 |
| QC12Y-25×2500 | 3° | ≥5 | 40-800 | 37 | 21,000 | 3500×2400×2500 |
There are currently no optional accessories for this item.
