Key Features

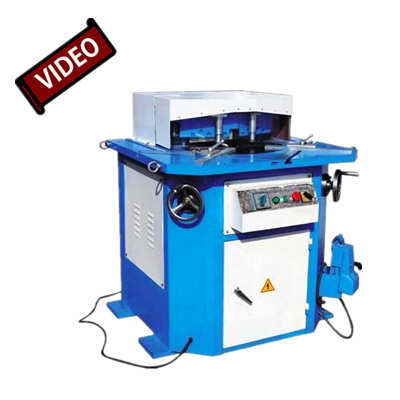

● This machine is a kind of thin-plate notching machinery.
● The user can get different shapes of the material by changing cutting angles(45°~135°).
● The equipment is suitable for use in the field of motor-car,shipbuilding,air conditioning,duct,cooker and stainless products.
● The machine frame is structured with steel welded plate. The worktable and spin table are structured with casting steel.
● This machine is reliable control with easy adjustment and maintenance.
Specification
| Model | QX28Y-200/4 |
| Max cutting thickness |
Common Carbon Steel:4mm Mild Steel&Stainless Steel:2mm |
| Max cutting length | 200mm |
| Cutting angle range | 45°~135° |
| Power | 4KW |
| Gross weight | 1350kgs |
| Dimension | 150x 100x140cm |
There are currently no optional accessories for this item.
