Products information

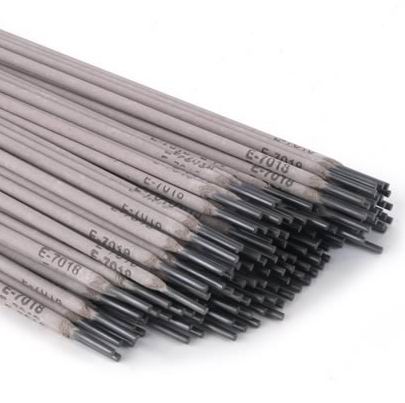

AWS E7018 (GB E5018) is carbon steel welding electrode covered with a high titania potassium type coating. Both AC and DC can be applied, and it is applicable for all-position welding, including vertical-down welding. It shows a very good welding performance with small spatters, easy restrike arc and very good wled shape.Suitable for welding low carbon steel structures and low carbon galvanized plate especially applicable for vertical-down welding and intermittent welding.
Chemical Compossition of Deposited Metal(%)，AWS E7018 (GB E5018)
| C | Mn | Si | S | P | Cr | Ni | Mo | V | |
| Standard | -- | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.08 |
Mechanical Properties of Deposited Metal，AWS E7018 (GB E5018)
|
Yield pointбb(MPa)
|
Tensile Strength бb(MPa) | Elongation δ5(%) |
Impact Value(J) |
|
| -30℃ | ||||
| Standard | ≥400 | ≥490 | ≥22 | ≥27 |
Sizes, packing& Recommended Current(AC or DC), AWS E7018 (GB E5018)
| Size(mm) | ф2.5×350 | ф3.2×350 | ф4.0×400 | ф5.0×400 | |
| Current(A) | 70-110 | 100-140 | 140-180 | 190-240 | |
| Packing | 5kg/box, 20kg/carton | ||||
Feature picture
