200KG Suction Self-controlled Flux Drying Machine
$1246.00 USD
Video
CG2-11H Demonstraction CG2-11M Demonstration
Key Features
● Can cut the pipe and bevel I,V shapes(45°).
● The length of the chain can be extended according to the diameter of the pipe.
Specification
| Model | CG2-11H | CG2-11M | CG2-11E |
| Input Power | don't need electricity | AC220V | |
| Diameter of the pipe(O.D) | >φ100mm | >φ108mm | φ50-φ600mm |
| Wall thickness(mm) | 5-50mm | 5-50mm | 5-50mm |
| Cutting speed(mm/min) | Manual controlled | 50-750 | 50-1150 |
| Chains | 82burls/2.4meters | no chains | 82burls/2.4meters |
| Dimension | 420x280x450mm | 350x240x220mm | 420x300x450mm |
| Weight | 11kgs | 23.5kgs | 13.5kgs |
Remarks:

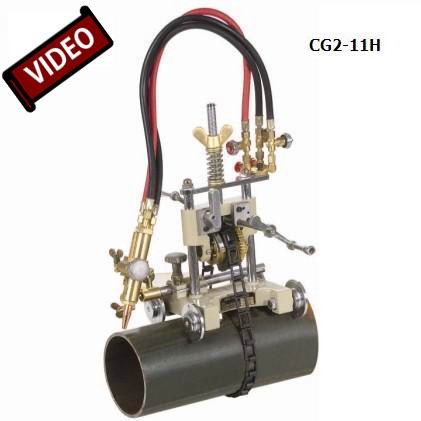

● The CG2-11H is a Handy controlled cutting speed by rotating the chains.

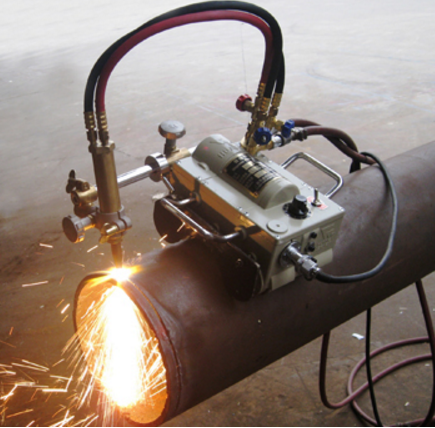

● The CG2-11M is a Magnetic clamping cutting machine.
● The CG2-11E is a Electric controlled cutting machine.
CG2-11H working site CG2-11M working site
There are currently no optional accessories for this item.
