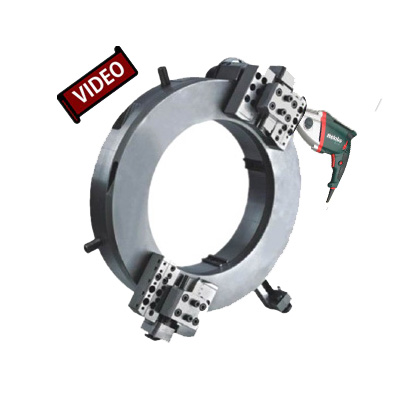

OCE series, 1”-48” Pipe beveling&Cutting Machine

OCE series, 1”-48” Pipe beveling&Cutting MachineBT002947

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 set)
0	Need to log in
1--5	Need to log in
above6	Need to log in

Driven:: Electric Driven

Model:: OCE 1-6 OCE 2-8 OCE 4-10 OCE 6-12 OCE 8-14 OCE 10-16 OCE 12-18 OCE 14-20 OCE 16-22 OCE 18-24 OCE 20-26 OCE 22-28 OCE 24-30 OCE 26-32 OCE 30-36 OCE 36-42 OCE 42-48

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

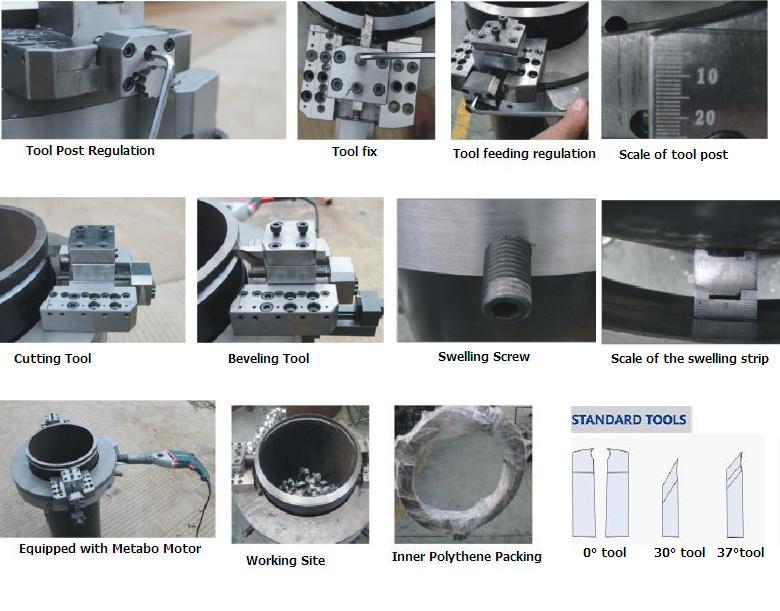

3D Demonstration Installation of the machines

On-Site Working(OCE series)

Definition

● Outside Clamping Electric(OCE)
● Outside Clamping Pneumatic(OCP)
● Outside Clamping Hydraulic(OCH)

Key Characterics

● The Outside Clamping type pipe beveling&cutting machines is a split frame design, allows the machine to separate and mount around the OD of the in-line pipe or fittings for strong, stable clamping. It performs precise in-line cut or simultaneous cut/bevel operations, as well as weld end preparation on open ended pipe.

● Cut and Bevel the carbon steel pipes by choosing the HSS material tools and stainless steel pipes by choosing the TCT material tools.

● OCE series are equipped with METABO motor.

● CE Certificated

● The work range can be customerized.

Specification

● Driven Type: Electric AC220V 50HZ

● Power: 1-2.5KW

Electric drive	Pneumatic drive	Hydraulic drive	Working range O.D		Wall thickness mm	Dimension mm	N.W kg	G.W kg
Electric drive	Pneumatic drive	Hydraulic drive	inch	mm	Wall thickness mm	Dimension mm	N.W kg	G.W kg
OCE 1-6	OCP 1-6	OCH 1-6	1”-6”	25.4-168.3	≤25	560x500x200	47	69 actual
OCE 2-8	OCP 2-8	OCH 2-8	2”-8”	50.8-219	≤25	560x500x200	54	79
OCE 4-10	OCP 4-10	OCH 4-10	4”-10”	114.3-273	≤25	750x600x250	63	94
OCE 6-12	OCP 6-12	OCH 6-12	6”-12”	168.3-323	≤25	750x600x250	78	113
OCE 8-14	OCP 8-14	OCH 8-14	8”-14”	219-377	≤25	850x700x250	83	119
OCE 10-16	OCP 10-16	OCH 10-16	10”-16”	254-406.4	≤25	850x700x250	85	122
OCE 12-18	OCP 12-18	OCH 12-18	12”-18”	323.9-457.2	≤25	850x700x250	93	130
OCE 14-20	OCP 14-20	OCH 14-20	14”-20”	355-508	≤25	850x700x250	115	158
OCE 16-22	OCP 16-22	OCH 16-22	16”-22”	323.9-457.2	≤25	850x700x250	115	158
OCE 18-24	OCP 18-24	OCH 18-24	18”-24”	457.2-609.6	≤25	850x930x270	128	174
OCE 20-26	OCP 20-26	OCH 20-26	20”-26”	508-660	≤25	850x930x270	160	195
OCE 22-28	OCP 22-28	OCH 22-28	22”-28”	550-715	≤25	1150x1150x270	165	208
OCE 24-30	OCP 24-30	OCH 24-30	24”-30”	609.6- 762	≤25	1150x1150x270	170	212
OCE 26-32	OCP 26-32	OCH 26-32	26”-32”	660-813	≤25	1300x1300x270	195	238
OCE 30-36	OCP 30-36	OCH 30-36	30”-36”	770- 914.4	≤25	1300x1300x270	210	256
OCE 36-42	OCP 36-42	OCH 36-42	36”-42”	914.4-1066.8	≤25	1450x1450x270	258	282
OCE 42-48	OCP 42-48	OCH 42-48	42”-48”	1066.8- 1220	≤25	1600x1600x270	288	342
