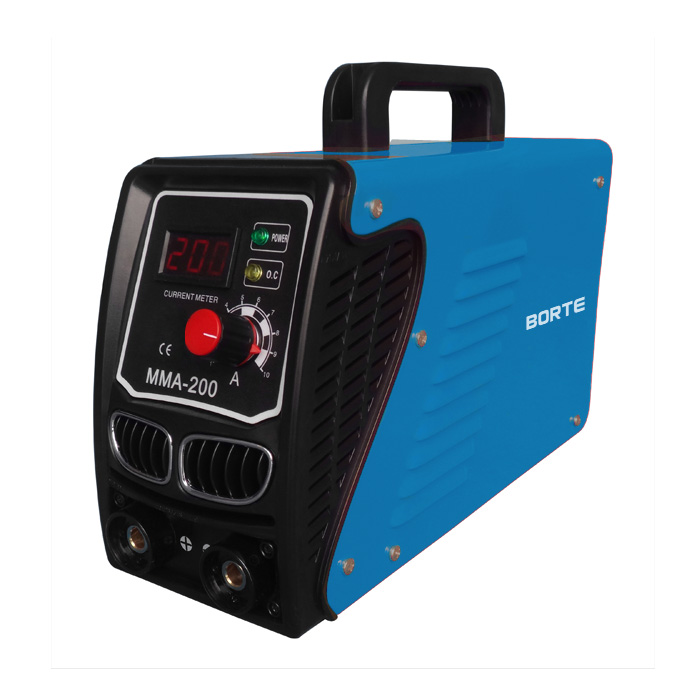

MMA-200
  • MMA-200

MMA-200 BT003810

Brand: BORTE
$1.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units Price per Unit (1 Unit = 1 Set)
1--99Need to log in
above100Need to log in

This item has been added to shopping cart.

View Shopping Cart  Continue Shopping

Groupbuy Wishlist

Lower Price, Buy Together. We will release the groupbuy for this item by collecting the information from your Groupbuy Wishlist and offer you an unbelievable price.

*

*

*



Key Features

● Automatically compensate Voltage fluctuation.

● Automatically over-voltage and over-current protection.

● Good thrust compensation and dynamic characteristics, less spatter, high efficiency and excellent weld appearance.

● Applicable to a variety of acidic and alkaline electrode.

● Applicable Material: Carbon steel, Stainless steel, Low-alloy steel.

● Can continously weld φ4.0mm electrode rods.

● The lift TIG function is optional.

● CE certificated.


Specification

 Model  MMA-200
 Rated Input Voltage

 220V±15%

 Rated Input Power  7.1KVA
 No-load Voltage  62V
 Rated Output Current  200A
 Rated Output Voltage  28V
 Range of Output Current  20-200A
 Range of Output Voltage  21.2-28V
 Duty Cycle  60%
 Insulation Grade  F
 Protection Class  IP21S
 Dimension(mm)  315x120x198
 Weight  6.5kg



There are currently no optional accessories for this item.
