Portable CNC cutting machine,Flame&Plasma cutting
  • Portable CNC cutting machine,Flame&Plasma cutting
  • Portable CNC cutting machine,Flame&Plasma cutting

Portable CNC cutting machine,Flame&Plasma cuttingBT003628

Brand:
$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units Price per Unit (1 Unit = 1 set)
0Need to log in
1--5Need to log in
above6Need to log in
Mode:
Flame Plasma Flame&Plasma
Width:
1000mm 1250mm 1500mm 1800mm Customerized
Length:
2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 1000mm Customerized

This item has been added to shopping cart.

View Shopping Cart  Continue Shopping

Groupbuy Wishlist

Lower Price, Buy Together. We will release the groupbuy for this item by collecting the information from your Groupbuy Wishlist and offer you an unbelievable price.

*

*

*

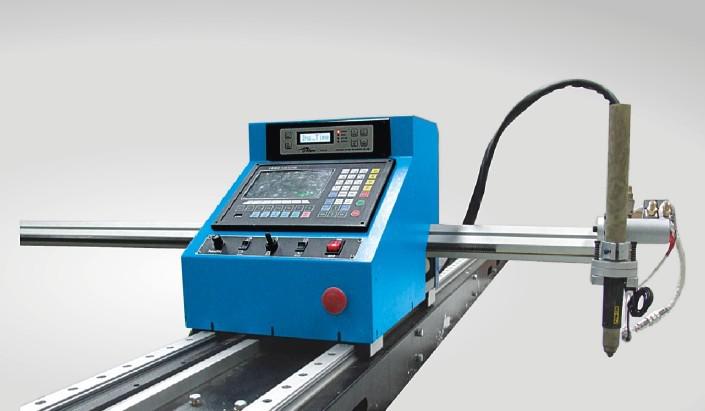

      Operation of the CNC Flame cutting machines                                  Demonstration of the CNC plasma cutting mode





BORTE have supplied hundreds of the portable cnc cutting machines all around the world. We have a rich knowledge about the CNC cutting machines.

Beside you select the cutting mode, cutting width, cutting length, please also let us know the material of the plate and the max cutting thickness of the plate you will do.

How to choose a suitable cnc cutting machine? Please click the Selection GuideCustomerized cutting range is available as per your specific requirement.



Description

 The machine is an upgraded substitute for manual-cutting/semi-automatic cutting/profiling cutting machines .

● The Portable NC cutting machines(PNC series) can cut any shapes using flame and plasma cutting processes. These machines are economical, compact, lightweight and high precision, making them very portable and easy for an operator to carry the machine from job to job, for both indoor and outdoor cutting.

● The machine are extremely versatile and suitable for factories of all sizes, with application in automotive, construction, shipbuilding, fabrication and other industries.

● The machine's CNC system has an intuitive LCD display with graphical menu driven operation. NC programs in EIA format can be loaded for cutting via USB port or RS-232 download. FastCAM programming software is offered with the machines to allow the user to create effective cutting programs that maximize productivity and plate utilization. The CAD file(DXF/DWG format) can be converted into program file. All the functionality you can expect from a large scale CNC cutting machine, in a smaller portable size, with a very affordable price.



Applications

It can be widely used in the industries as aerospace, agricultural machinery, construction machinery, railway manufacturing, elevator manufacturing, special construction vehicle, tool manufacturing, oil machinery manufacturing, food machinery, decorated advertizing, foreign processing service and all kinds industries related to mechanical manufacturing.


Cutting materials

It can be used to cut  Carbon steel by  flame cutting  and carbon steel,  stainless steel, copper alloy, aluminum alloy, titanium alloy, electrolytic plate, aluminized Steel Sheet by plasma cutting.



Key features

FastCAM nesting Software
 The FastCAM® Software is compatible with other CAD/CAM systems, however the system does not require additional software;  You can Draw,  Nest and cut from the one programming system. Best of all, FastCAM® allows people at a shop floor level to start profile cutting with the minimum of training. The FastCAM® System produces immediate NC code for a wide variety of cutting machines and there is also a non-NC edition available.
 Draw the part or import a DXF file.
● AUTOCAD DXF data reading/writing through FastCAM nesting software.

● Easy NC program output to PNC by USB memory

 Manual tool pathing.
 Edit, Verify and Output NC code.
 Interactive Nesting.

CNC system ( Model:F2100B Shanghai Jiaoda University brand)

● 512M Memory for users' Programs
● Built-in Library of 45 types commonly used figures
● Break-point&Power-cut restoration
● Returning to reference point
● Kerf compensation
● Revolving
● Mirror image

●English, Russia, French, Portuguese, Spainish, Chinese Language swithable for the CNC system operation


Mechanical structure features:
 High strength aluminum alloy assembly synthesis for the flame cnc cutting machine. Heavily steel rail for the plasma cnc cutting machine, good stability, not deformation, beautiful and easy.
 A new combined chassis structure design, cross arm and master station and machinery and CNC parts can be decomposed and combination. Chassis external equipped with USB interface, control cable interface, plasma arc striking interface, inside the case to avoid high temperature and with fan cooling, ensure the stable operation of the machine.
 Beams using special aluminum alloy industrial profiles, light weight, no deformation. Beam can tear open outfit, convenient the transfer and the packing and shipping, and can ensure the beam vertical degree no change
 More human master station, directly face cutting site, the maximum widened work perspective
 Walking part adopts precision gapless gear, rack driving, guarantee the accuracy, eliminate the gap.
 Motor using stepping motor drive technology( Panasonic Brand), and using high subdivision drive, high accuracy, smooth operation

 Neugart brand gear.
 Electrical Torch height control for the flame cutting. Arc Voltage Controller and Torch anti-collision device are equipped for the plasma cutting machine.


Specification



 Model  PNC-1000 / 1250 / 1500 / 1800
 Input power voltage

 Standard:220V±15% 50HZ

 110V 60HZ is optional

Rated Power Supply  200W
 Modes of cutting   Flame/Plasma
 Beam Width(mm)   2000mm
 Effective cutting  width (X axis)  ≤1500mm
 Cutting  hickness(Flame cutting)  6-150mm(select the suitable cutting nozzle)
 Cutting Thickness(Plasma cutting) 0.1-25mm(according to the plasma power source)
 Cutting Speed(Flame) 0-4000mm/min
 Cutting speed(Plasma) according to the plasma power source
 Gas for flame cutting Oxygen+Acetylene or Oxygen+Propane
 Plasma air  Compressed Air
 Fuel gas pressure  ≤0.1Mpa
 Oxygen pressure  ≤0.7Mpa
 Cutting Precision  0.2mm
 Control accuracy  ±0.001 MM



Aluminum Guide Rail ( Standard)

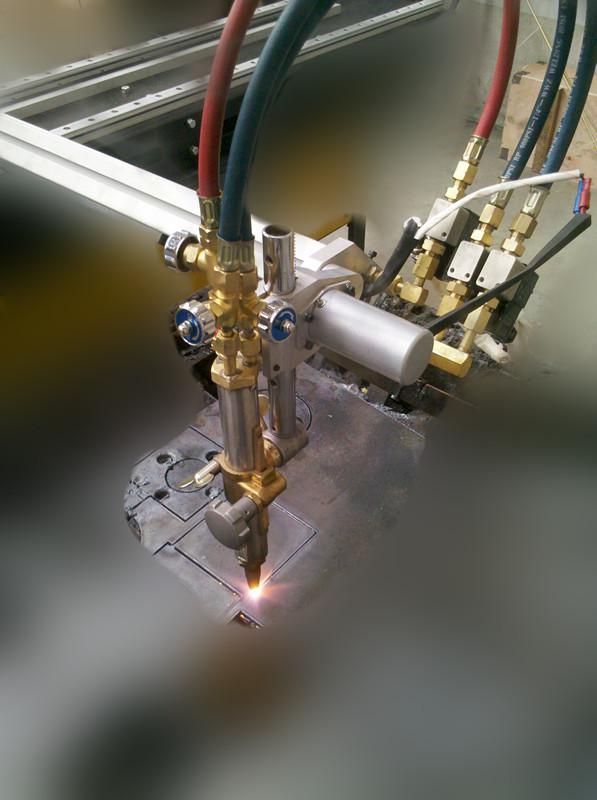

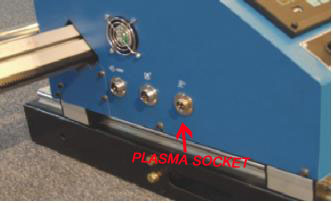

        High strength aluminum alloy                               Flame cutting torch                                Plasma input socket





Heavily Steel Guide Rail ( Optional)

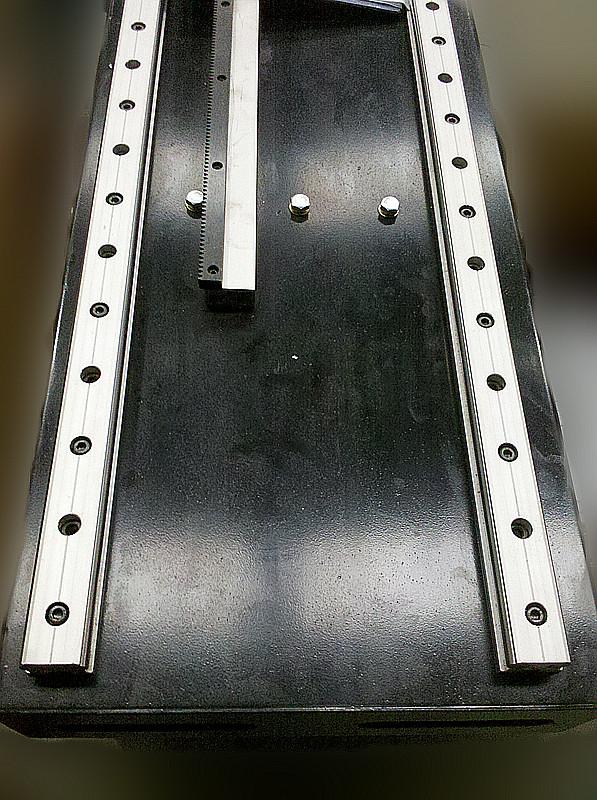

High precise&durability Rail(Steel)   Plasma arc voltage controller&plasma torch                  Plasma input socket





Note: The prices don't include the plasma power source and plasma torch. which will be quoted after get your specific requirements.
