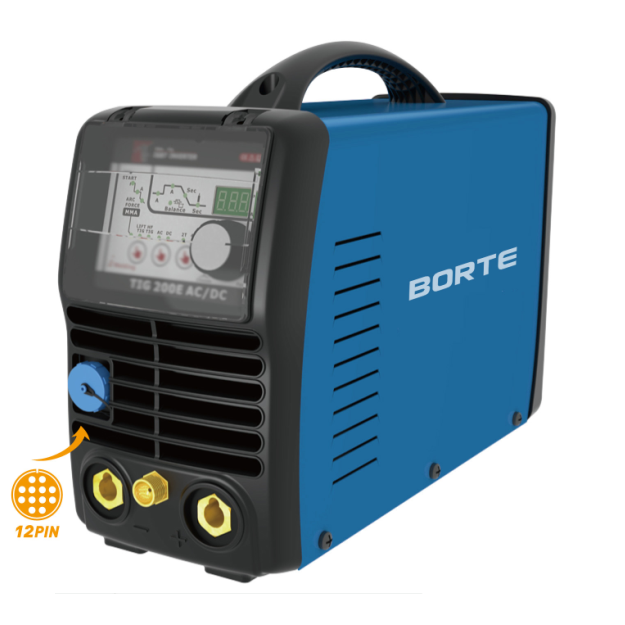

Digital  TIG-200E AC/DC Pulse
  • Digital  TIG-200E AC/DC Pulse
  • Digital  TIG-200E AC/DC Pulse

Digital TIG-200E AC/DC PulseBT004987

Brand: BORTE
$1.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units Price per Unit (1 Unit = 1 Set)
1--19Need to log in
above20Need to log in

This item has been added to shopping cart.

View Shopping Cart  Continue Shopping

Groupbuy Wishlist

Lower Price, Buy Together. We will release the groupbuy for this item by collecting the information from your Groupbuy Wishlist and offer you an unbelievable price.

*

*

*



Key Features

● Full digital Controlled.

● Function of DC TIG, AC TIG, MMA, Pluse.

● Small size and light weight are suitable for indoor and outdoor using, specially for decoration industry.

● Foot pedal are optional.



Specification

Model

 TIG 200E AC/DC PULSE

Input Voltage

 AC230V, 50/60Hz

Rated input capacity(KW)

 4.3(AC TIG) 3.8(DC TIG)

5.7(MMA)

Duty Cycle 40°C 10min

 35% 200A(AC TIG)

 60% 160A (AC TIG)

 100% 120A(AC TIG)

 40% 170A(MMA&DC TIG)

 60% 140A (MMA&DC TIG)

 100% 110A(MMA&DC TIG)

No Load Voltage(V)  52
Welding Current Range A  10-200(AC TIG)  10-170(MMA&DC TIG)

Up Down slope(S)

 0-10

Pre-flow / Post-flow(S)

 0-10

Pulse frequency HZ 0.5-200
Pulse width range % 5-95
AC Frequency HZ 60
Clearance width(AC TIG) -5 - 5
Hot Start(MMA) 0-100A
Arc Force(MMA) 0-100A
Protection Class IP23S

Efficiency %

 85

Net weight (KG)

 8.2

Dimension(mm)

 430X150X300

Gross weight(KG) 13 (with torch, 13.2KG)
Actual Ship Dimension(mm) 560x320x390
