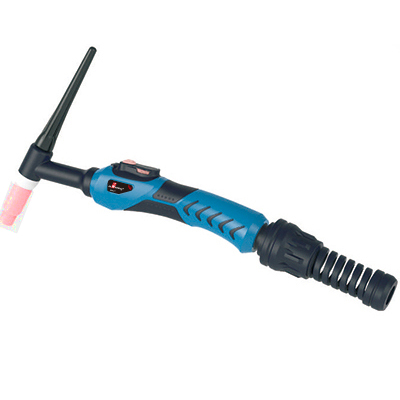

SR 26 TIG Torch
  • SR 26 TIG Torch

SR 26 TIG TorchBT004236-Promotion

Brand:
$1.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units Price per Unit (1 Unit = 1 pc)
above1Need to log in
Type:
SR-26
Length:
4M (12.5")

This item has been added to shopping cart.

View Shopping Cart  Continue Shopping

Groupbuy Wishlist

Lower Price, Buy Together. We will release the groupbuy for this item by collecting the information from your Groupbuy Wishlist and offer you an unbelievable price.

*

*

*



Specification

Model SR-26/26F
Type of cooling air cooled
Torch Termination

Cable and Gas Whole(M16*1.5+2Pins)

(Other type can be customerized)

Cable

16SQMM(12FT or 25FT)

The length can be customerized

Angle 75°
Rating 200A DC or 160A AC
Tungsten Electrodes Φ0.5, Φ1.0, Φ1.6, Φ2.0, Φ2.4, Φ3.2



Termination Selection Guide list

 Termination Type Fit for
 M16x1.5+2pin TIG-200A, TIG-250A, AC/DC TIG-200P
 SK35+M10x1.0+2pin

Digital SYN MIG-200M

 SK35+M10x1.0+12pin

 with Potentiometer function

Digital AC/DC TIG 200

Digital TIG-200 DC Pulse

 SK35+M10x1.0+7pin PROTIG-315 AC/DC



Remark: The potentiometer function TIG torch is for the digital welding machine.



Drawing of the Consumables(SR 17 18 26)
